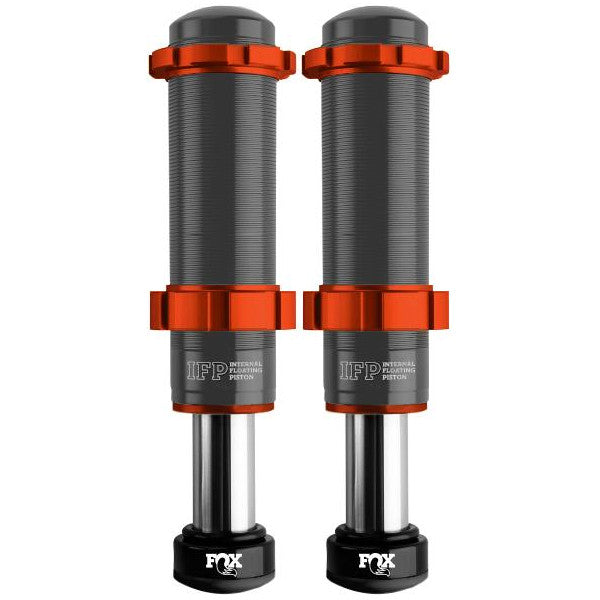

FOX Factory Race Series 2.0 Bump Stop IFP (Pair) – Maximum Impact Control for Off-Road Enthusiasts

Upgrade Your Off-Road Suspension with FOX Factory Race Series Bump Stops

The FOX Factory Race Series 2.0 Bump Stop IFP (Internal Floating Piston) is the ideal solution for off-road enthusiasts looking to protect their vehicle’s suspension system during intense driving conditions. These bump stops are performance-tuned for vehicle-specific applications, ensuring optimal damping and protection when tackling rugged terrain, including trails, rock crawling, and high-speed desert driving. The advanced design with lightweight aluminum ensures faster heat dissipation and consistent performance in extreme off-road environments.

Key Features of FOX Factory Race Series 2.0 Bump Stop IFP

Precision-Tuned for Vehicle-Specific Performance
The FOX Factory Race Series 2.0 Bump Stop IFP is tailored to your vehicle’s specific needs, providing unmatched suspension protection by absorbing heavy impacts during off-road adventures. This makes it perfect for trucks, SUVs, and other off-road vehicles requiring enhanced control and suspension durability on unpredictable terrains.

Efficient Heat Dissipation with Aluminum Body
The threaded, impact-extruded, black anodized 6061-T6 billet aluminum body offers superior heat management compared to steel, keeping the bump stop cool and performing optimally during long, rough off-road runs. This makes the FOX 2.0 Bump Stop IFP suitable for high-performance off-roading, where heat buildup can impair suspension efficiency.

Advanced Damping with Internal Floating Piston (IFP)
The 1-1/4" hard chrome plated 4130 steel shaft is engineered with an Internal Floating Piston (IFP), which separates the oil from high-pressure nitrogen gas, reducing aeration and maintaining damping consistency. This technology ensures the bump stop remains effective in high-impact situations, providing better control and smoother rides on rugged terrains.

FOX Factory Race Series Bump Stops: Designed for Durability

Redundant Sealing System for Long-Term Reliability
To protect against dirt, debris, and other contaminants, the FOX 2.0 Bump Stop IFP is equipped with a redundant sealing pack system consisting of a main seal, wiper seal, and scraper seal. This multi-layer sealing system ensures smooth operation and extends the bump stop’s lifespan, even under harsh off-road conditions.

CNC-Machined Billet Aluminum Components for Strength and Lightweight Performance
All components of the Factory Race Series 2.0 Bump Stop IFP, including the body and piston, are black anodized CNC-machined 6061-T6 billet aluminum, providing exceptional strength and corrosion resistance. This makes the bump stops incredibly durable while keeping them lightweight—an essential feature for maintaining vehicle performance in off-road conditions.

Tunable Valving for Customizable Damping
For those seeking personalized suspension control, the Factory Race Series 2.0 Bump Stop IFP includes tunable, velocity-sensitive deburred valve shims. This feature allows you to adjust the damping response based on your off-road driving needs, whether you require maximum impact absorption for rock crawling or increased stability for high-speed off-road racing.

Technical Specifications for FOX Factory Race Series 2.0 Bump Stop IFP

• Body: Threaded, impact-extruded, black anodized, CNC-machined 6061-T6 billet aluminum
• Travel: 1.85"
• Front Lift Height: All
• Extended Length: 10.04"
• Compressed Length: 8.18"
• Components: Black anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP)
• Piston: Heavy-duty powdered steel
• Valving: Tunable, velocity-sensitive deburred valve shims
• Seals: Redundant sealing pack system (main seal, wiper seal, scraper seal)
• Top Mount: Threaded body
• Bottom Mount: None

Frequently Asked Questions (FAQ)

Q: What makes the FOX 2.0 Bump Stop IFP suitable for off-road driving?
A: The FOX Factory Race Series 2.0 Bump Stop IFP is precision-engineered with an Internal Floating Piston (IFP) that separates oil from nitrogen gas, ensuring consistent damping performance under extreme conditions. This design, combined with tunable valving and durable aluminum components, makes it perfect for demanding off-road terrain.

Q: How does the redundant sealing system enhance durability?
A: The redundant sealing pack system consists of multiple layers of protection, including a main seal, wiper seal, and scraper seal. This design prevents dirt, water, and other contaminants from entering the bump stop, ensuring long-lasting performance and reliability in rough environments.

Q: Can I adjust the performance of the bump stop for different off-road conditions?
A: Yes, the FOX Factory Race Series 2.0 Bump Stop IFP features tunable valving, allowing you to adjust the damping response for various off-road situations. This is ideal for fine-tuning your vehicle’s performance based on the type of terrain you're tackling, whether it's rock crawling or high-speed desert driving.

Q: What materials are used in the FOX 2.0 Bump Stop IFP?
A: The bump stop body is made from 6061-T6 billet aluminum, which is black anodized for added durability and heat dissipation. The shaft is made from 1-1/4" hard chrome plated 4130 steel, offering maximum strength for absorbing high-impact forces.

Q: Is the FOX Factory Race Series 2.0 Bump Stop IFP compatible with lifted vehicles?
A: Yes, the FOX 2.0 Bump Stop IFP is designed to be compatible with a range of off-road vehicles, including those with lifted suspensions. Always check the fitment requirements to ensure compatibility with your specific vehicle setup.
